Navistar

NavKal Pro

NavKal Pro

$ 1,500.00 MXN
$ 1,500.00 MXN
Sale Sold out
Taxes included. Shipping calculated at checkout.

NavKal is Engine Control Module (ECM) programming software for Navistar and MaxxForce engines.

Features:

  • Update calibrations

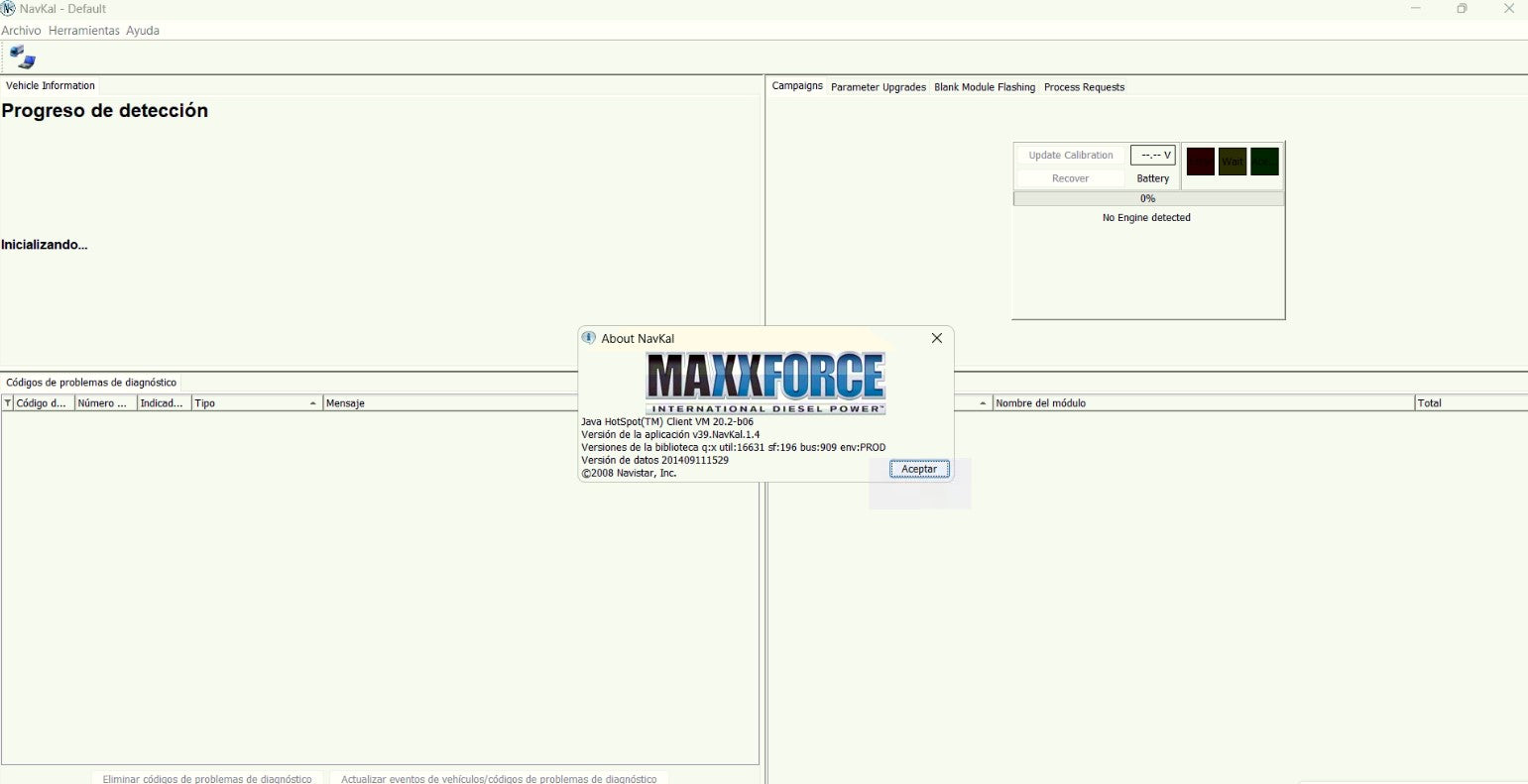

  • Vehicle information is displayed on the screen, such as the ECM software version and the availability of updates.
  • Read and clear diagnostic trouble codes (DTCs)
  • Parameter updates controlled by the original equipment manufacturer (OEM)
  • Blank module programming
  • Program all Pre-Maxxforce and Maxxforce motors
Coverage:
  • I63BX / DT 466: 3 Box I6 (1994 - 1997)
  • V83BX / T444E: 3 Box V8 (1994 - 1997)
  • i308 / DT 466: DLC I6 (1998 - 2004)
  • T444E: DLC V8 (1998 - 2004)
  • I313 / DT 466 and 570: DLCII I6 (2005 - 2006)
  • V128 / VT 365: DLCII V8 (2005 - 2006)
  • V126 / VT 275: DLCII V6 (2005 - 2006)
  • MaxxForce 5 (2007-2009)
  • MaxxForce 7 (2007-2009)
  • MaxxForce 7 (2010-2012)
  • MaxxForce 7 (2013-)
  • MaxxForce DT, 9, 10 (2007-2009)
  • MaxxForce DT, 9, 10 (2010-2012)
  • MaxxForce DT, 9, 10 (2013)
  • MaxxForce 11, 13 (2008-2009)
  • MaxxForce 11, 13 (2010-2013)
  • MaxxForce 15 (2010-2013)
  • N9, N10 SCR (2014-)
  • N13 SCR (2015-)

Supported interfaces:
  • NEXIQ Technologies – USB-Link 2 and 3
  • Dearborn Group Technologies – DPA 5
  • Noregon® Systems, Inc. – DLA+, DLA+ Wireless

Installation requirements:
Windows 7, 10
1 GHz Intel Core 2 Duo, AMD Athlon X2 or better
2 GB (32-bit) or 4 GB (64-bit) RAM
300 MB of available hard drive space
Monitor with 1024 x 768 resolution
One or more RP1210A compatible communication devices with SAE J1708 and/or SAE J1939 support. This includes adapters such as the DG DPA5 or USB Link 2.


Instructions: Once your purchase is made, technical support will be contacted to activate software
Activation : 1 PC
