NEXIQ

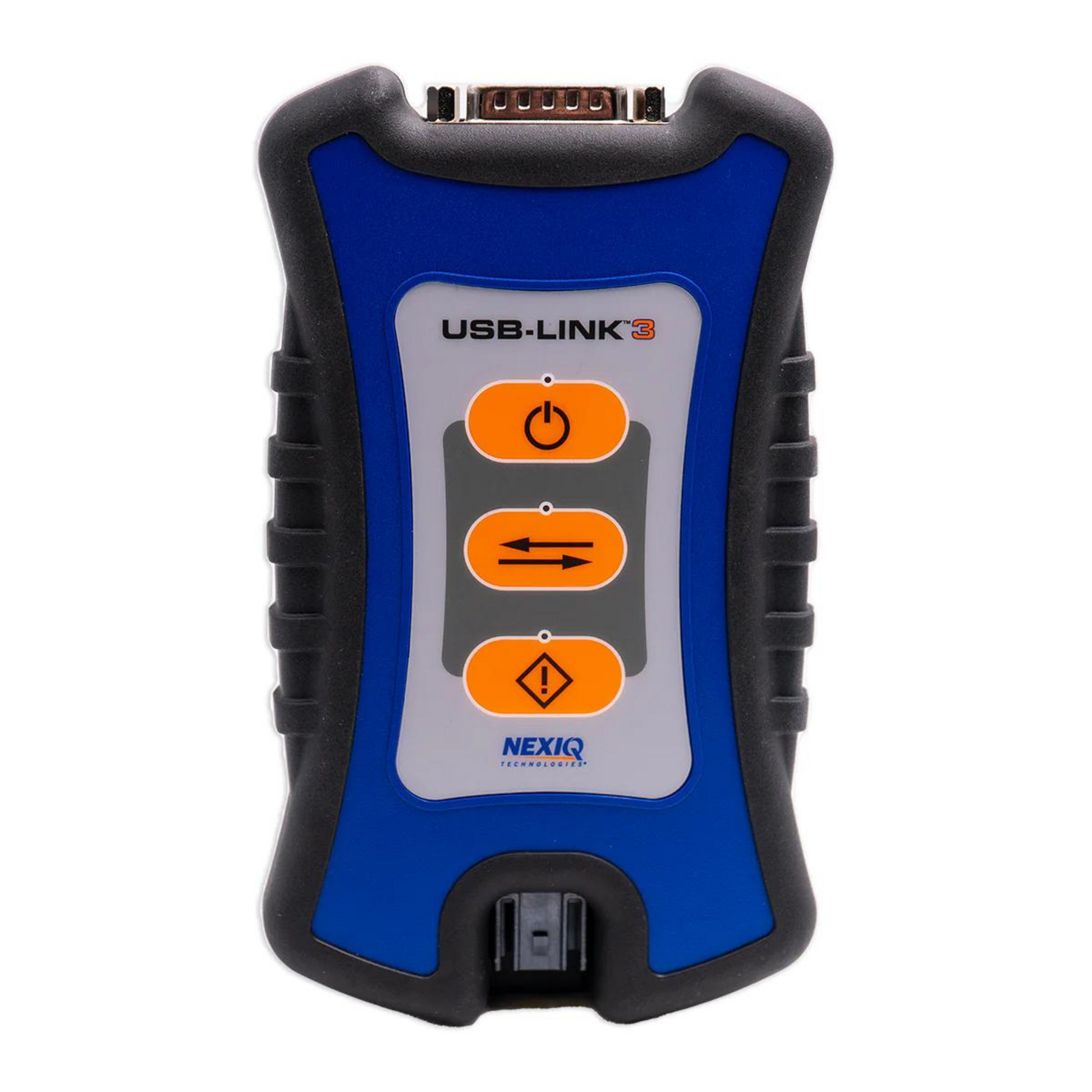

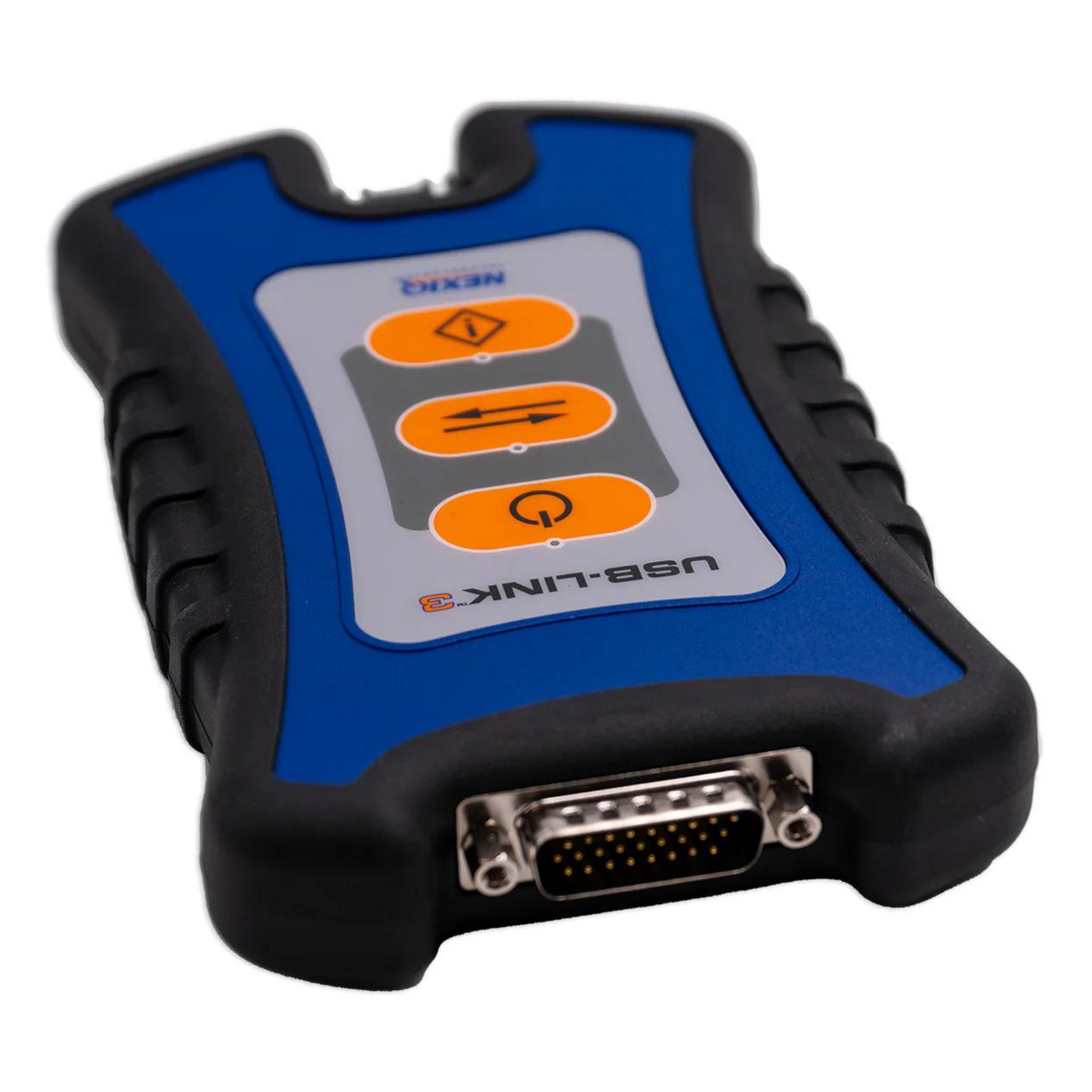

Original NEXIQ USB Link 3 Wireless Kit

Original NEXIQ USB Link 3 Wireless Kit

The NEXIQ USB-Link™ 3: Wireless Edition is designed for flexibility, connecting to your PC, tablet or smartphone, via Bluetooth and Wi-Fi. Additionally, the USB cable gives technicians the option to connect directly to a PC when working in the field or during signal outages. Built to support the latest protocols (CAN FD, DoIP) and with compatibility with a wide range of OEM diagnostic software, the USB-LinkTM 3 is our most advanced VCI to date with performance and technology you can trust. in the future.

Compatible Software (Not included):

  • Detroit Diesel Diagnostic Link
  • CAT Electronic Technician (On-Highway only)
  • cummins site
  • International - ServiceMAXX Fleet Pro
  • Hino eXplorer
  • Volvo PTT
  • VCAD Elite Mack/Volvo
  • V-MAC Service Tools
  • Allison DOC® For PC-Service Tool - Protocols Supported: J1939, J1708/J1587, and J1850
  • Allison DOC® For Fleets (1000/2000) - Protocols Supported: J1939, J1850
  • Allison DOC® For Fleets (3000/4000) - Protocols Supported: J1939, J1708/J1587
  • Eaton ServiceRanger
  • Bendix ACom
  • WABCO Toolbox
  • Freightliner Service Link
  • International ABS
  • International DLB
  • International Intune
  • International CPI v2.02
  • PACCAR DAVIE4

Supported Protocols:

  • CAN FD / J1939 FD / ISO15765 FD - 250K, 500K, 1M b/s with auto baud detection
  • Single wire CAN (SWCAN)
  • ISO 11898-3 Fault Tolerant CAN (FTCAN)
  • Diagnostics Over Internet Protocol (DoIP)
  • J1708
  • J1850 VPW (Class 2)
  • ISO PWM (SCP)
  • ISO 9141 / KWP2000 (ISO 14230) K/L line
  • ALDL 9600 and 8192 baud
  • ATEC 160 baud

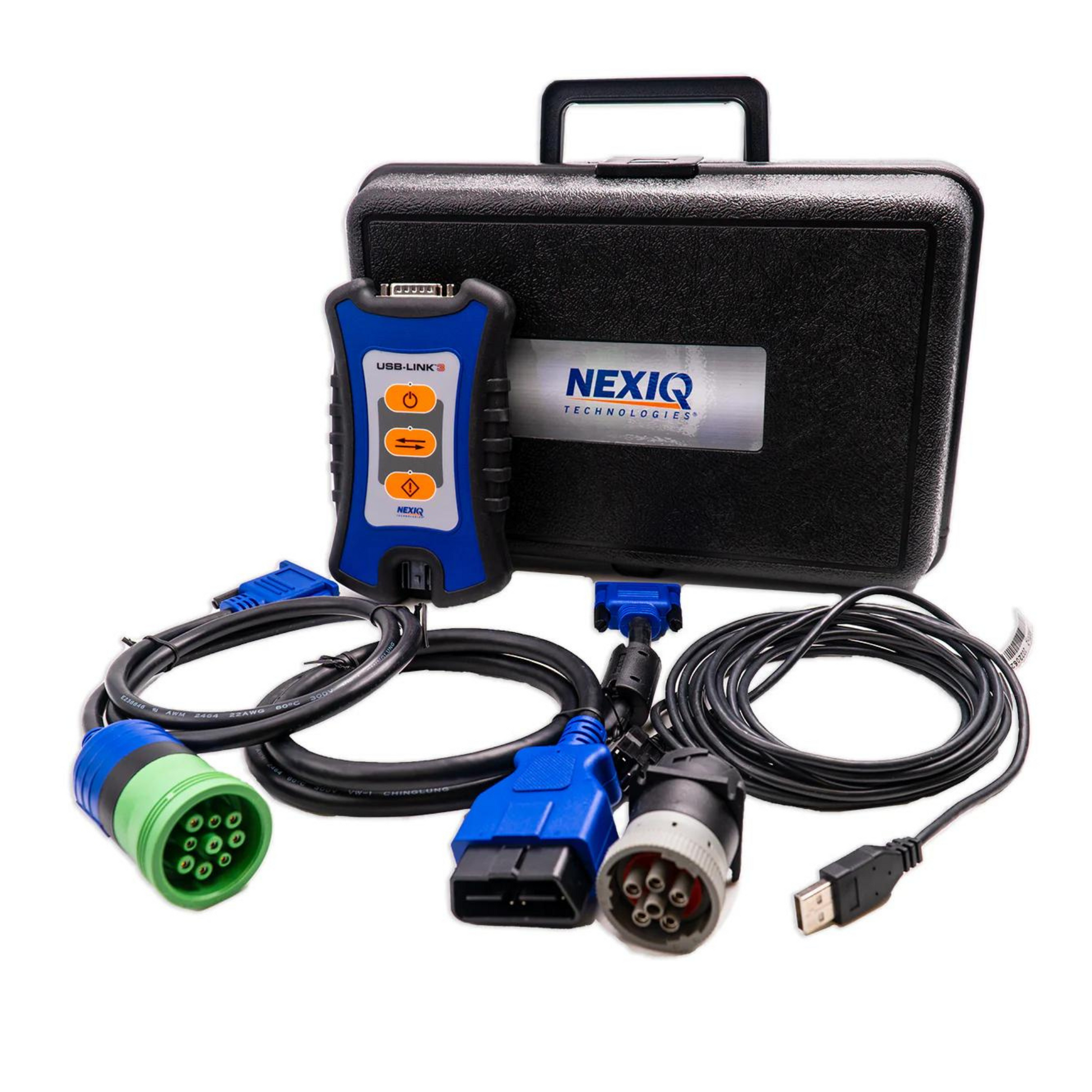

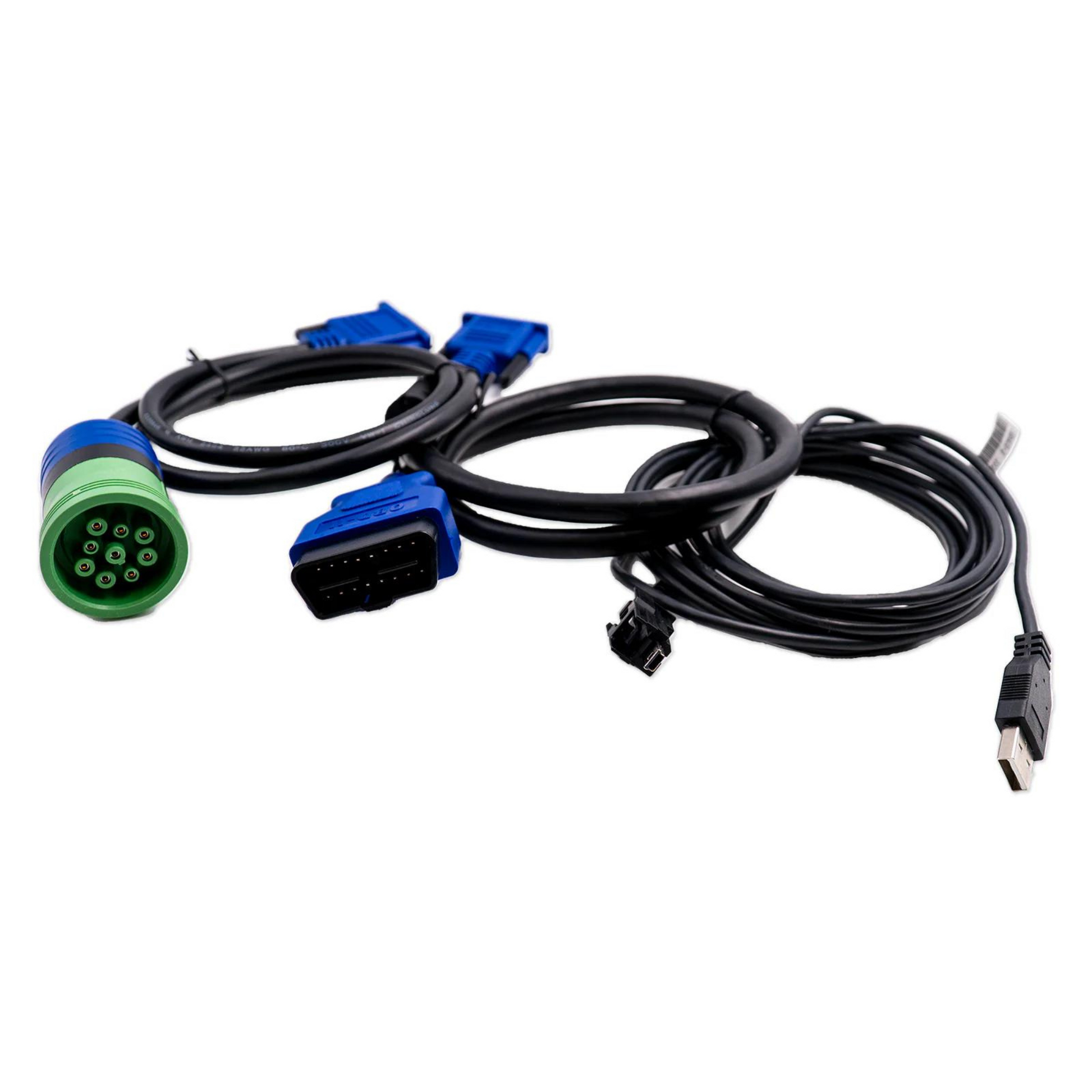

The USB-Link™ 3 contains:

  • USB cable with latch (PN 404032)
  • German (Deutsch ) 9-pin adapter, 1 meter (PN 493128)
  • J1962 Adapter (OBD II 16-Pin, 1 Meter (PN 491113)
View full details
